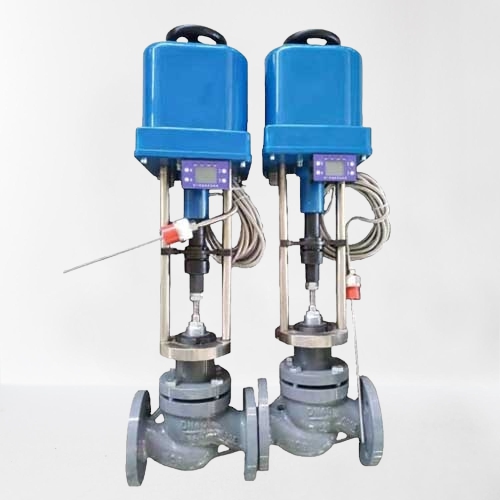

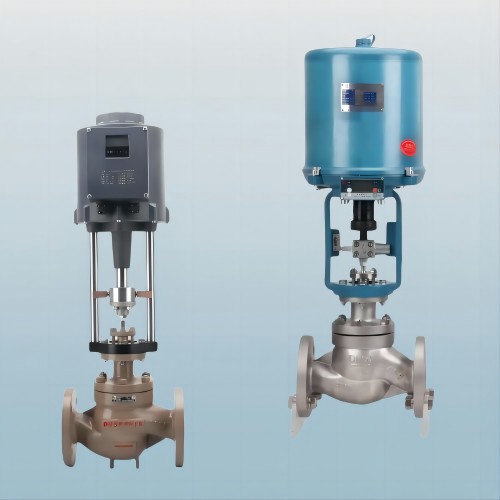

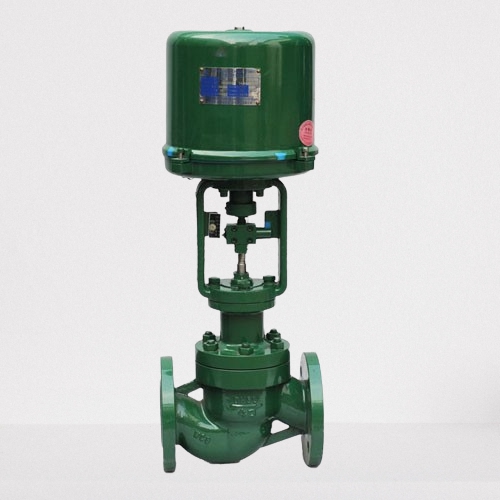

OEM 3-Ways Regulating Flange Sleeve Electric Control Valve Actuator for Industry

OEM 3-Ways Regulating Flange Sleeve Electric Control Valve Actuator for Industry

Product ID : Electric Control Valve 005

Product Attributes :

Normal Size: DN15--DN500

Pressure: PN16--PN320

Working temperature: low temperature, normal temperature, high temperature, vacuum

Valve standards: ASME, DIN, EN, JIS standard

Valve body material: WCB, carbon steel, cast steel, stainless steel, 304, 316, 316L

Applicable media: weak acid and alkali media, various highly corrosive chemical media, water, hydrogen, oxygen, air, oil, nitrogen, steam, ammonia, liquefied gas

Product Description

The electric three-way regulating electric control valve actuator is composed of a straight-stroke electronic electric actuator and a three-way converging (diverging) valve using a cylindrical thin-walled window-shaped valve core.

Product Specification:

Type	Electric control valve actuator
Size Range	DN15-DN400/Can be customized
Voltage	AC380V, AC220V
Body Material	SS304/SS316/WCB
Seat Material	PTFE
Shell Material	Aluminum alloy precision die casting
Connection Type	Flange ( GB/ANSI/DIN/JIS)
Applicable Medium	Water, Liquids, Gas, Oil, Powder, Steam, Acid-base, Corrosive Medium.
Temperature of Media	Low/Normal/Higher Temperature（Can be customized)
Rotation Angle	0 - 360 ° adjustable
Customized support	OEM, ODM,OBM
Brand Name	Yuan Jida
Color	Can be customized
Warranty	1 year
Place of Origin	Baoding,China

Advantages and application of the electric control valve actuators:

There is a servo system in the electric actuator, so there is no need for a separate servo amplifier. The electronic control unit is designed in the form of a box, and is cast in resin.

The driving amount feedback detection uses a high-performance conductive plastic potentiometer, which is highly reliable with a resolution of 1/250. The product is extremely

simple to connect. It only needs to be equipped with a DC4~20mA or DC1~5V input signal AC single-phase power line to control the operation. The adjustment mechanism adopts

a balanced valve plug structure, which has good valve stability, is not easy to vibrate, and has low noise. It has the characteristics of small temperature sensitivity and allows the use

of large pressure differences. It is used in situations with large flow and loose leakage requirements.

Factory Information:

Yuan Jida Group, founded in 2013 in Baoding, Hebei Province, China.

Is a manufacturer and supplier of both electric actuator valve and pneumatic actuator valves,

including globe valves, ball valves, check valves, gate valves, and butterfly valves.

The materials of the valve include stainless steel, carbon steel, alloy, and duplex stainless materials.

The company's industrial valves are widely used in various applications,

including water treatment, chemical processing, pulp and paper, oil and gas, and power generation.
