Product Information：
|

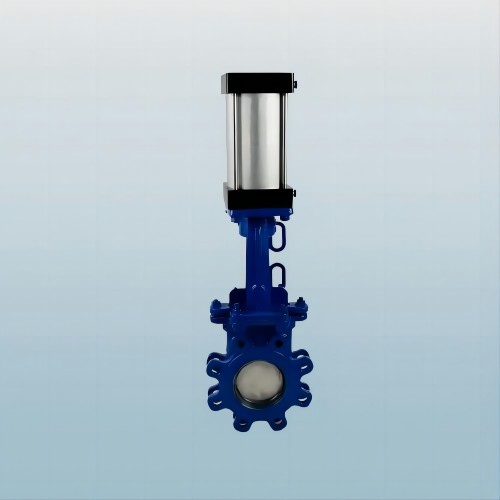

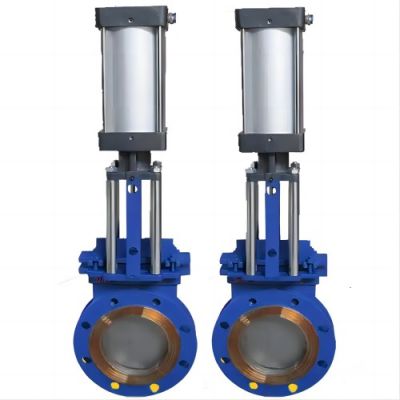

Pneumatic Knife Gate Valve
|
|
|
Main Body Material
|
C.I,WCB,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti,
CF8,CF8M,CF3,CF3M,2Cr25Ni20
|
|
Nominal Diameter
|
DN50～DN2000mm NPS 2"~80"
|
|
Nominal Pressure
|
0.6Mpa,1.0Mpa,1.6Mpa,2.5Mpa,10K,150Lb
|
|
Working temmperature
|
0℃～+1100℃(the specific temperature range depends on the sealing of the material and the properties of the medium)
|
|
Applicable Medium
|
Sugar,pulp,sewage,coal slurry,ash,dust,slag and water mixture
|
|
Link Flanges
|
ANSI B16.5,GB/T 9113,JB/T 79,HG,SH,JIS,DIN,NF,BS
|
|
Seal Form
|
Hard seal and soft seal
|
|
Accessory Accessories
|
1.Mounting flange 2.Solenoid valve,air filter,line switch
|
|
Gas Pressure
|
0.4～0.6Mpa
|
|
Solenoid Valve Voltage
|
DC24V AC220V
|
|
Others
|
Special size,color can be made according to customer's requirement.
|
Pneumatic knife gate valve is an automatic control instrument is more complex,by a variety of pneumatic components and body composition.
Often used for rapid cutting or opening. It is suitable for medium pipes such as sugar, pulp, sewage, coal slurry, ash,dust, slag and water mixture.
It can be used as medium cutting and throttling. The knife gate valve is suitable for horizontal installation and inclined installation.
Double acting cylinder:two position control for opening and closing of the gate; single acting cylinder:
when the circuit and gas path are cut off or malfunction,the gate automatically opens or closes, that is,normally closed or often opened.
